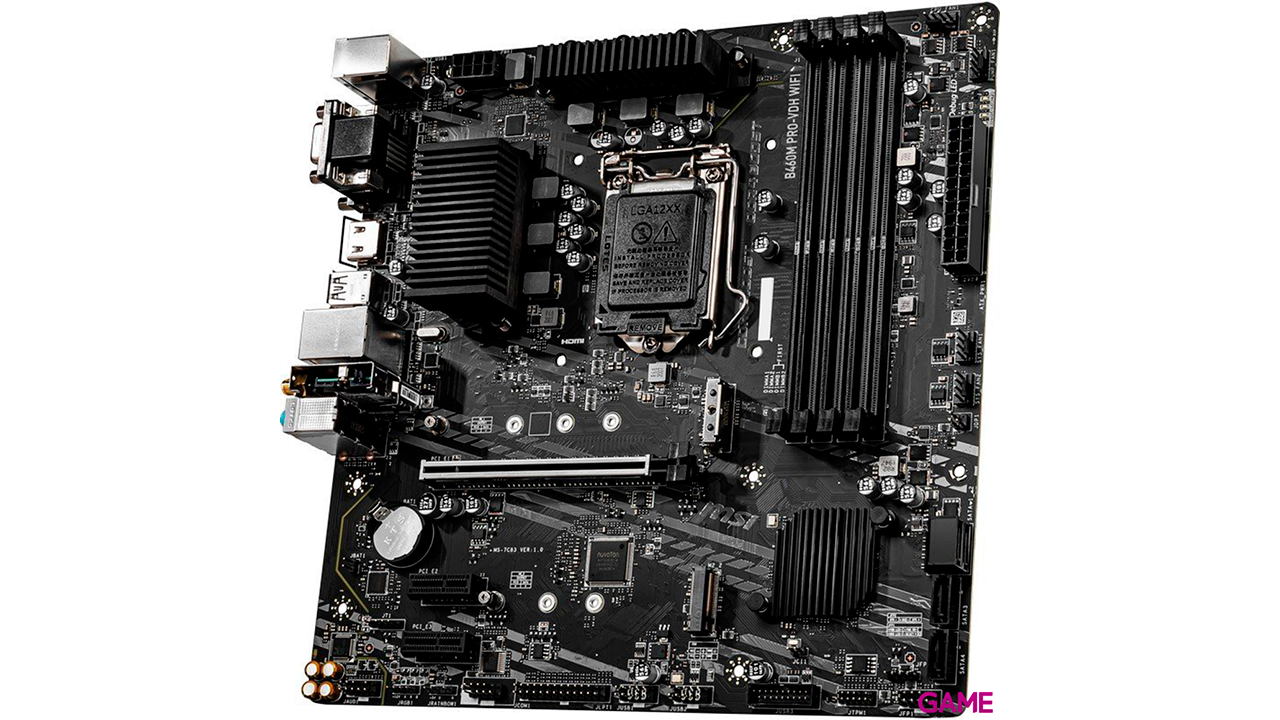

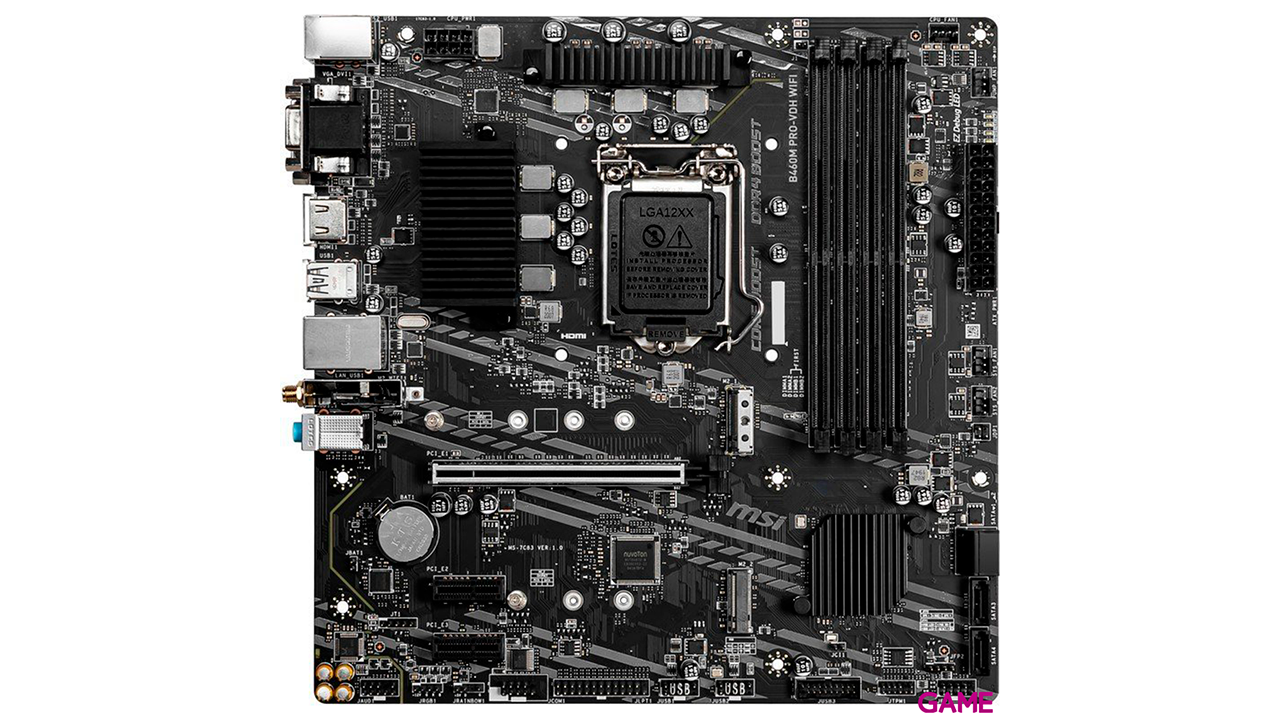

Placa Base MSI B460M Pro-VDH Wifi
La serie PRO ayuda a los usuarios a trabajar de manera más inteligente al brindar una experiencia eficiente y productiva.
Hazte con ella en GAME
Con una funcionalidad estable y un ensamblaje de alta calidad, las placas base de la serie PRO proporcionan no solo flujos de trabajo profesionales optimizados, sino también menos resolución de problemas y longevidad.
Características:
- Admite procesadores Intel® Core ™ / Pentium® Celeron® de décima generación para zócalo LGA 1200
- Admite memoria DDR4, hasta 2933 (máx.) MHz
- Core Boost: con diseño premium y diseño de potencia digital para admitir más núcleos y proporcionar un mejor rendimiento.
- DDR4 Boost: tecnología avanzada para entregar señales de datos puros para el mejor rendimiento y estabilidad.
- Twin Turbo M.2: la ejecución en PCI-E Gen3 x4 maximiza el rendimiento de los SSD basados en NVMe
- Audio Boost: recompensa tus oídos con calidad de sonido de estudio
- Steel Armor: Protección de tarjetas VGA contra flexiones y EMI para un mejor rendimiento, estabilidad y resistencia.
Especificaciones:
- CPU
- Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket. 1 2
- Please go to intel.com for compatibility information.
- Onboard graphics output are disabled when using the F SKU processors.
- Chipset
- Intel® B460 Chipset
- Memory
- 4x DDR4 memory slots supporting up 128GB 1
- Intel® Core™ i7/ i9
- Support DDR4-2933 Memory (Max.)
- Intel® Core™ i5 (Below)
- Supports DDR4-2666 Memory (Max.)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- See supported memory
- Please refer www.msi.com for more information on compatible memory.
- Expansion Slot
- 1x PCIe 3.0 x16 slot (from CPU)
- 2x PCIe x1 slots (from PCH)
- Onboard Graphics
- 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
- 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
- 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
- Audio
- Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
- LAN
- 1x Realtek® RTL8111H Gigabit LAN Controller
- Storage
- Intel® B460 Chipset
- 4x SATA 6Gb/s ports 1
- 2x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
- M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready 2
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
- RAID
- Intel® B460 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Wireless LAN & Bluetooth®
- Intel® 3168NGW
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports 802.11 a/ b/ g/ n/ ac
- Supports Bluetooth® 4.2
- USB
- Intel® B460 Chipset
- 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
- Form Factor
- mATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Internal connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water pump connector
- 2x 4-pin system fan connectors
- 1x front panel audio connector
- 2x system panel connectors
- 1x parallel port connector
- 1x serial port connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector

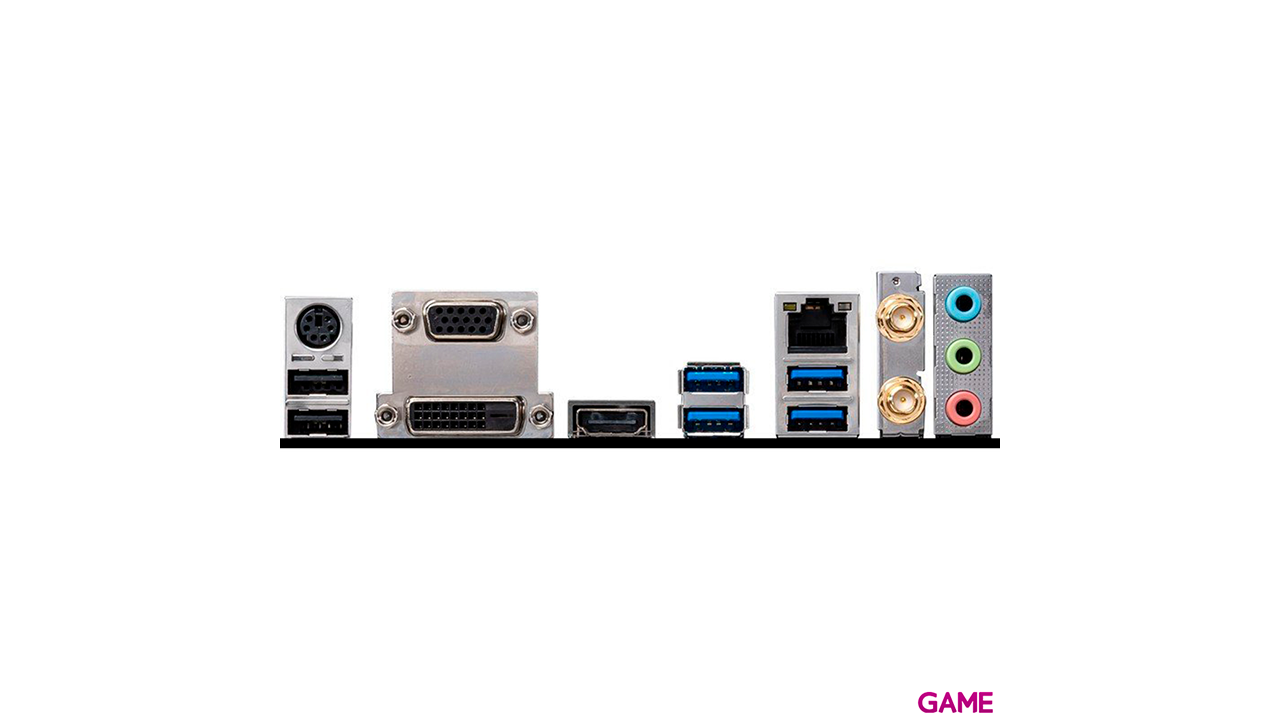

- Back panel Connectors
- Keyboard / Mouse
- VGA
- LAN
- USB 2.0
- DVI-D
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- Wireless / Bluetooth
- Audio Connectors
