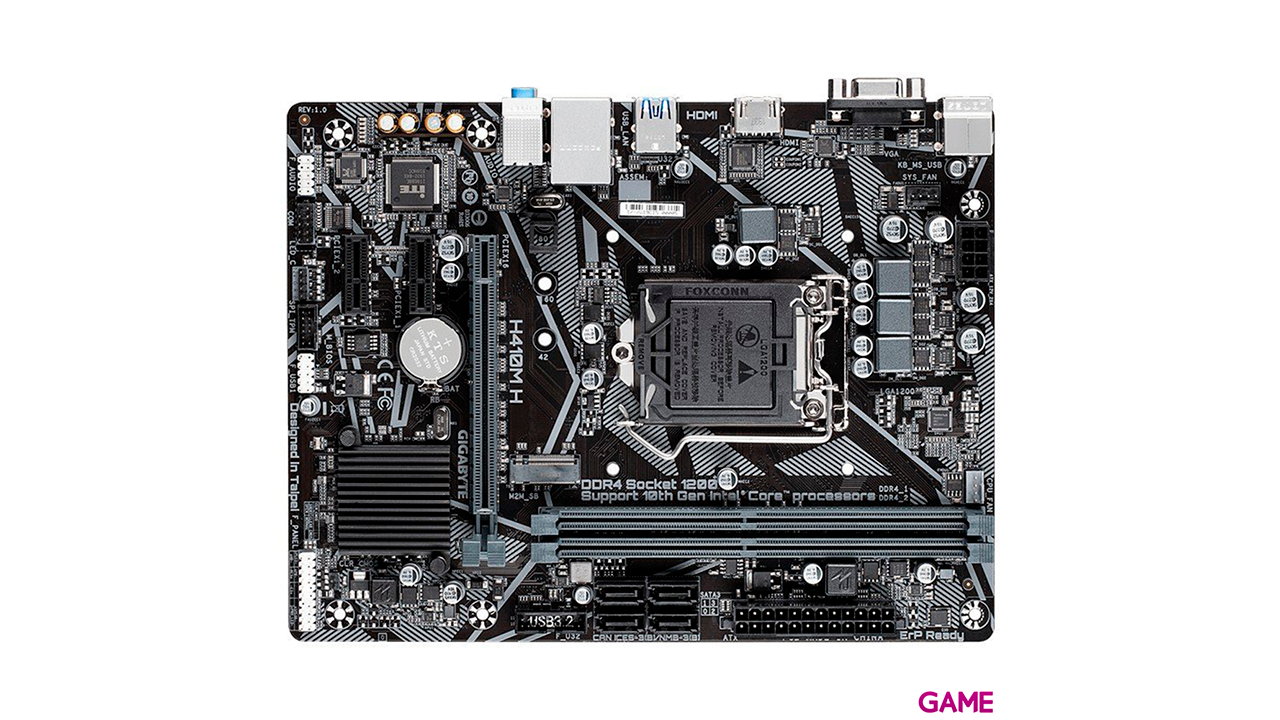

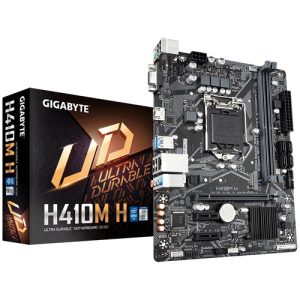

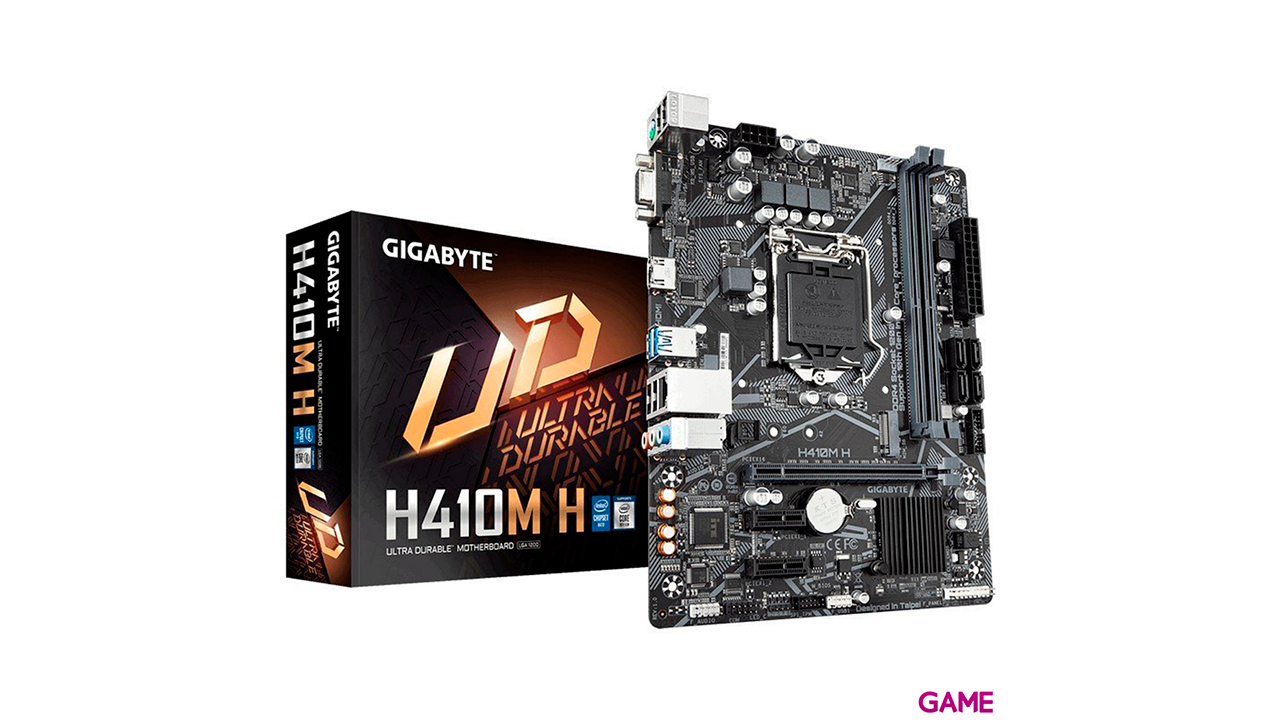

La nueva gama Gigabyte H410M H está hecha para durar fabricada con materiales resistentes de alta calidad y un PCB mejorado que permite una mejor refrigeración de tus componentes.
Especialmente diseñada para usarse con procesadores Intel Core de 10ª generación.Basada en el chipset Intel H410 Express, la placa base Gigabyte H410M H servirá para montar su PC de la mejor manera con un procesador de alto rendimiento y características exclusivas de Gigabyte como Smart Fan 5 y RGB Fusion.
Soporta la 10ª generación de procesadores Intel Core "Comet Lake-S", tarjetas gráficas PCI-Express 3.0 16x, discos SATA de 6 Gbps, RAM DDR4 y dispositivos USB 3.0.
Juega a los últimos lanzamientos, realidad virtual sin ralentización, multitarea intensiva, los procesadores Intel Core de 10ª generación son ultra versátiles. Los procesadores Intel Comet Lake-S ofrecen un rendimiento deslumbrante con altas frecuencias de núcleo, aún más núcleos e hilos, y un alto nivel de caché.
Características:
- Soporte para la 10ª generación de procesadores Intel Core en socket LGA 1200
- Soporte de memoria DDR4, hasta 2933 MHz
- 4 x2 puertos SATA compatibles 6 Gbps 1 M.2 PCIe 3.0
- Red de Gigabit Realtek 8118 con gestión de ancho de banda
- Gestión de temperatura y ventilador Smart Fan 5
- Fusión RGB con conector Led RGB
Especificaciones:
- CPU
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
- (Please refer "CPU Support List" for more information.)
- Chipset
- Intel® H410 Express Chipset
- Memory
- Intel® Core™ i9/i7 processors:
- Support for DDR4 2933/2666/2400/2133 MHz memory modules
- Intel® Core™ i5/i3/Pentium®/Celeron® processors:
- Support for DDR4 2666/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- (Please refer "Memory Support List" for more information.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
- * Support for HDMI 1.4 version and HDCP 2.3.
- Maximum shared memory of 512 MB
- Audio
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
- LAN
- Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
- (The PCI Express slots conform to PCI Express 3.0 standard.)
- Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
- 4 x SATA 6Gb/s connectors
- * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- USB
- Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 1 x M.2 Socket 3 connector
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

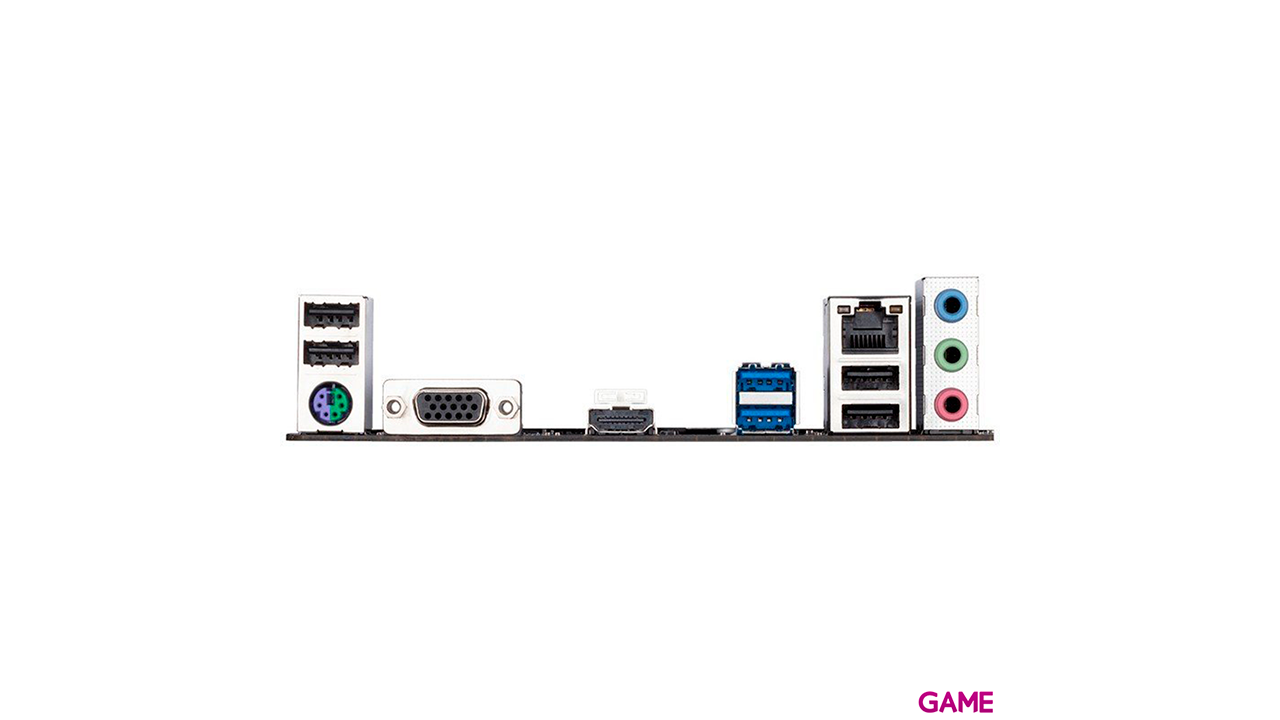

- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
- * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- Ambient LED
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- Smart Backup
- System Information Viewer
- Support for Q-Flash
- Support for Xpress Install
- Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® 8118 Gaming LAN Bandwidth Control Utility
- Operating System
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 22.6cm x 17.4cmme
