Compra la placa base Gigabyte B550 Aorus Master que soporta los procesadores AMD Ryzen de tercera generación.

Hazte con ella en GAME

Características:


• Admite procesadores AMD Ryzen ™ de tercera generación
• Doble canal ECC / No ECC DDR4 sin búfer, 4 DIMM
• Solución VRM digital directa de 16 fases con etapa de potencia 70A
• Diseño térmico avanzado con disipador térmico de matriz de aletas, tubo de calor de contacto directo y placa base térmica
• Ranura Ultra16 Durable ™ PCIe 4.0 Ready x16
• Triple Ultra-Fast NVMe PCIe 4.0 / 3.0 x4 M.2 con protecciones térmicas
• Intel® WiFi 6 802.11ax 2T2R y BT5 a bordo con antena AORUS
• Audio AMP-UP con condensadores ALC1220-VB y WIMA para SNR trasero de 120dB
• LAN ultrarrápida de 2.5GbE con gestión de ancho de banda
• Soporte USB 3.2 Gen2 Type-C ™ y HDMI
• RGB FUSION 2.0 admite tiras LED direccionables y LED RGB
• Smart Fan 5 presenta múltiples sensores de temperatura, encabezados de ventilador híbridos con FAN STOP y detección de ruido
• Q-Flash Plus Update BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
• IO Shield preinstalado para una instalación fácil y rápida

Especificaciones:


• CPU
• AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
• (Please refer "CPU Support List" for more information.)
• Chipset
• AMD B550
• Memory
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
• /3200/2933/2667/2400/2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Onboard Graphics
• Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Maximum shared memory of 16 GB
• Audio
• Realtek® ALC1220-VB codec
• * The back panel line out jack supports DSD audio.
• Support for DTS:X® Ultra
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• LAN
• Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module
• Intel® Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
• New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
• 2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated in the Chipset:Supporting PCIe 3.0 x4 mode
• * The PCIEX4_2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX4_2 slot operates at up to x2 mode when a device is installed in the SATA3 4 or SATA3 5 connector.
• Storage Interface
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
• New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
• 2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x4/x2 SSDs
• New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x4/x2 SSDs
• 6 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10
• USB
• CPU:4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Chipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 2 x USB 2.0/1.1 ports on the back panel
• Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

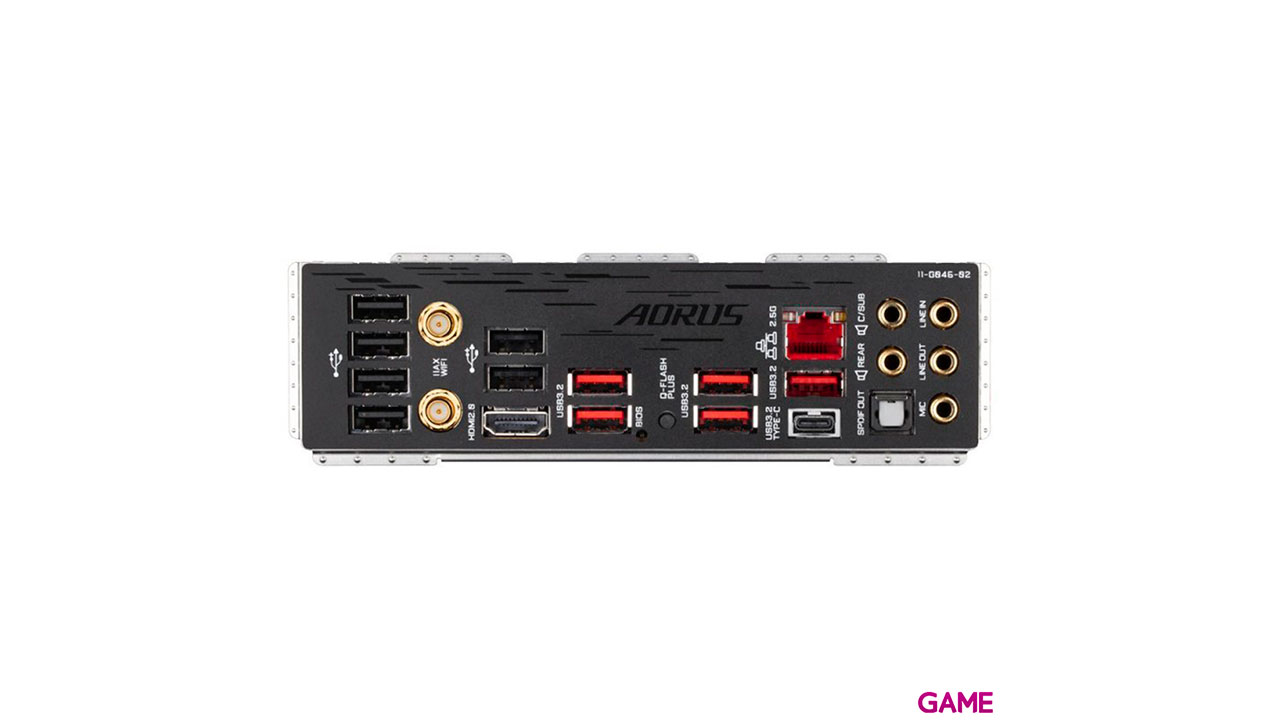

• Back Panel Connectors
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 6 x USB 2.0/1.1 ports
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection
• BIOS
• 2 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton® Internet Security (OEM version)
• XSplit Gamecaster + Broadcaster (12 months license)
• Realtek® 8125 Gaming LAN Bandwidth Control Utility
• Operating System
• Support for Windows 10 64-bit
• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
