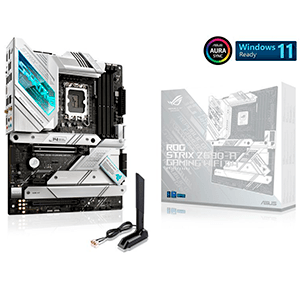

La placa base ROG Strix Z690-A Gaming WiFi D4 despliega una sólida entrega de energía y enfriamiento para liberar toda la fuerza de los procesadores Intel Core  de 12.ª generación, todos orquestados por controles inteligentes exclusivos de ASUS que brindan experiencias de usuario avanzadas.

Hazte con ella en GAME

Mientras tanto, el WiFi 6 integrado y las amplias ranuras PCIe 4.0 M.2 brindan la velocidad que necesita, y las innovaciones para el bricolaje ayudan a simplificar el proceso de construcción de la PC. Para colmo, Strix Z690-A Gaming WiFi D4 deslumbra con iluminación RGB personalizable y un refinado acabado de metal cepillado.

Características:


• Zócalo Intel LGA 1700: listo para procesadores Intel Core , Pentium Gold y Celeron de 12.a generación
• Solución de alimentación óptima: 16 + 1 DrMos con conector de alimentación ProCool II, estranguladores de aleación de alta calidad y condensadores duraderos para admitir procesadores de varios núcleos

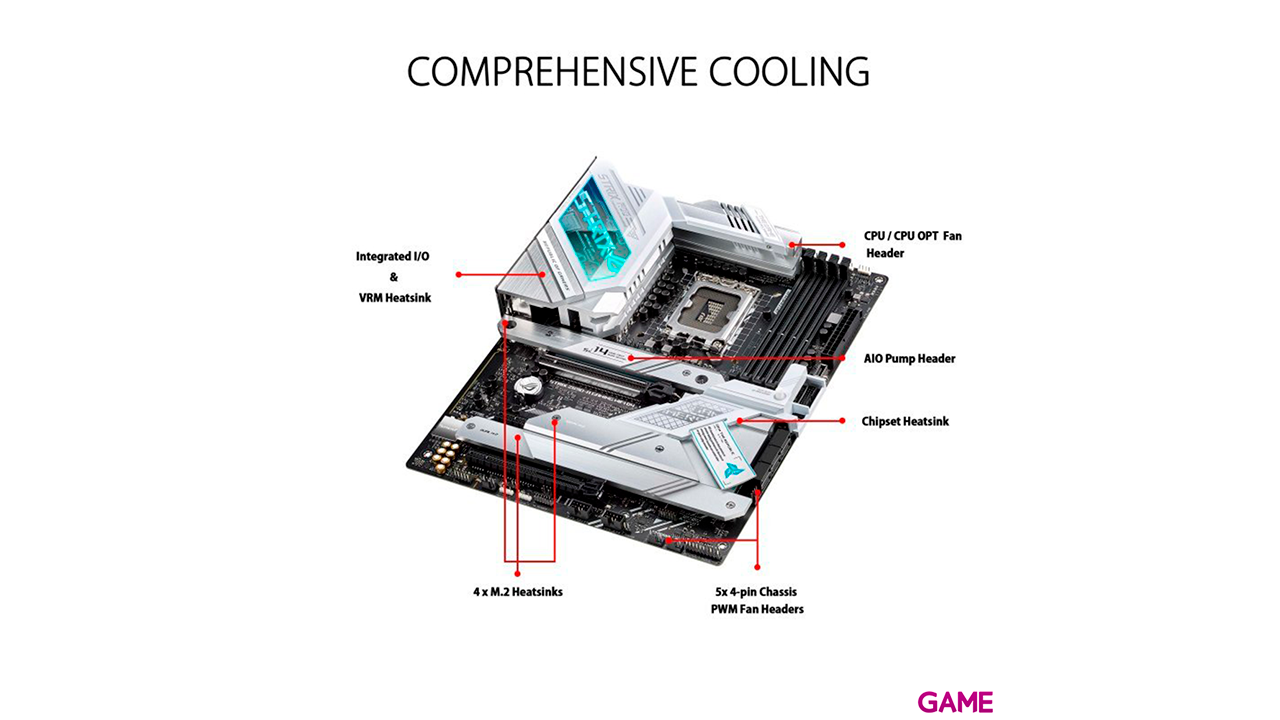

• Diseño térmico optimizado: cubierta de E / S integrada y disipadores térmicos VRM con almohadilla térmica de alta conductividad, cuatro disipadores térmicos M.2 integrados y placa posterior M.2 para la ranura M.2_1
• Redes de alto rendimiento: Intel® WiFi 6 (802.11ax) integrado e Intel® 2.5 Gb Ethernet con ASUS LANGuard
• La mejor conectividad para juegos: admite salida HDMI® 2.1 y DisplayPort ™ 1.4, cuatro ranuras M.2 y USB 3.2 Gen 2x2 Type-C®
• Control inteligente: Overclocking AI exclusivo de ASUS y cancelación de ruido AI bidireccional para simplificar la configuración y mejorar el rendimiento
• Diseño amigable para el bricolaje: PCIe®Slot Q-Release, M.2 Q-Latch, Organizador de cables reutilizable ROG, protector de E / S premontado, botón BIOS FlashBack ™ y botón Clr CMOS
• Personalización incomparable: iluminación Aura Sync RGB exclusiva de ASUS, que incluye un encabezado RGB y tres encabezados Gen 2 direccionables
• Audio para juegos líder en la industria: audio de alta fidelidad con ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III
• Software de renombre: versión de prueba gratuita de 60 días de AIDA64 Extreme incluida y panel de control UEFI BIOS intuitivo con MemTest86 integrado

Especificaciones:


• CPU
• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Intel® Z690 Chipset
• Memory
• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem III
• *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphics
• 1 x DisplayPort**
• 1 x HDMI® port***
• *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Support 8K@60Hz as specified in DisplayPort 1.4.
• ***Support 4K@60Hz as specified in HDMI® 2.1.
• **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots
• Intel® 12th Gen Processors
• 1 x PCIe 5.0/4.0/3.0 x16 slot*
• Intel® Z690 Chipset**
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 1 x PCIe 3.0 x1 slot
• * Please check PCIe bifurcation table in User Guide Chapter 1 // support site.
• ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
• Storage
• Intel® 12th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
• Intel® Z690 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
• 6 x SATA 6Gb/s ports***
• * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
• ** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled.
• *** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.
• Ethernet
• 1 x Intel® 2.5Gb Ethernet
• Wireless & Bluetooth
• Intel® Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2
• USB
• Rear USB: Total 10 ports
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB: Total 7 ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• - Impedance sense for front and rear headphone outputs
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• - Supports up to 32-Bit/384 kHz playback
• Audio Features
• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Premium audio capacitors
• - Audio cover
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage related
• 4 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2x2 connector (support USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x CPU Over Voltage jumper
• 1 x 12-1 pin Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header
• Special Features
• Extreme Engine Digi+
• -5K Black Metallic Capacitors
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink backplate
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Clear CMOS button
• - CPU Socket lever protector
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• AURA Sync
• - AURA RGB header
• - Addressable Gen 2 headers
• ASUS HYDRANODE
• - 1 x 12-1 pin Front Panel Audio header (AAFP)
• - 1 x Chassis fan support* (CHA_FAN1P)
• * Visit ASUS Website for the latest compatibility list.
• Software Features
• ROG Exclusive Software
• - GameFirst VI
• - ROG CPU-Z
• - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• - Sonic Radar III
• - DTS® Sound Unbound
• - Anti-virus software
• ASUS Exclusive Software
• Armoury Crate
• - AIDA64 Extreme (60 days free trial)
• - AURA Creator
• - AURA Sync
• - Fan Xpert 4
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - 5-Way Optimization with AI Overclocking
• TPU
• EPU
• DIGI+ VRM
• Turbo app
• MyAsus
• WinRAR
• UEFI BIOS
• AI Overclocking Guide
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• FlexKey
• MemTest86
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
• Accessories
• Cables
• 4 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Rubber Package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User guide
• Operating System
• Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
• ATX
• 30.5cm x 24.4cm
