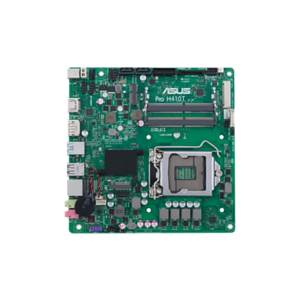

Las placas base para empresas ASUS Pro proporcionan funciones mejoradas para facilitar sus operaciones de TI, incluida una protección integral del sistema, estabilidad y confiabilidad 24 horas al día, 7 días a la semana, y un paquete de administración mejorado para una personalización más sencilla.

Hazte con ella en GAME

ASUS, conocida como la marca de placas base más grande y conocida del mundo, ofrece un servicio posventa de primer nivel y disponibilidad garantizada a largo plazo para maximizar su inversión durante el ciclo de vida del producto y ofrece una solución de alta calidad con TCO optimizado para su negocio. necesidades informáticas.

Características:


• Tecnología BIOS de recuperación automática exclusiva de ASUS para la recuperación automática del BIOS del sistema a partir de una copia de seguridad verificada
• Cabecera LPC dedicada y tarjeta de depuración con pantalla LCD para una resolución de problemas más rápida
• Registro de eventos para capturar y administrar información detallada del sistema
• Revestimiento innovador resistente a la humedad para proteger la placa base de entornos hostiles
• Kit de BIOS comercial para hacer que la personalización sea más rápida y eficiente
• ASUS Control Center Express (ACCE) para facilitar la gestión de terminales de TI

Especificaciones:


• CPU
• Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Supports CPU up to 65 W
• * Refer to www.asus.com for CPU support list
• **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Intel® H410
• Memory
• 2 x SO-DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
• Integrated Graphics Processor *1
• 1  x DisplayPort 1.4 **
• 1  x HDMI 1.4b
• 1  x LVDS
• *Graphics specifications may vary between CPU types.
• **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Expansion Slots
• Intel® H410 Chipset
• 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode*
• * The Wi-Fi/BT module is purchased separately
• Storage
• Total supports 1 x M.2 slot(s) and 2 x SATA 6Gb/s ports
• Intel® H410 Chipset :
• 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
• 2 x SATA 6Gb/s port(s)
• LAN
• Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• ASUS LANGuard
• Audio
• Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *2
• - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• USB Ports
• Rear USB Port ( Total 4  )
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 2 x USB 2.0 port(s)(2 x Type-A)
• Front USB Port ( Total 7  )
• 2 x USB 3.2 Gen 1 port(s)
• 5 x USB 2.0 port(s)
• Special Features
• Bespoke Motherboard Design & Business Focused Features :
• - Overcurrent Protection: Short circuit prevention, protects your system
• - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
• - ASUS Event Log: Record activities of system and provides information in BIOS
• - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
• - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
• - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
• Easy Assembly Design:
• - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
• Operating System Support
• Windows® 10 64-bit
• Back I/O Ports
• 1 x Realtek RTL8111H 1Gb Ethernet
• 1 x DisplayPort
• 1 x HDMI
• 2 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 2 x Audio jack(s)
• 1 x DC power connector(s)
• Internal I/O Ports
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
• 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode)
• 1 x SPI TPM header
• 1 x COM port(s) connector(s)
• 2 x SATA 6Gb/s connector(s)
• 1 x SATA power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Chassis Intrusion connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x 2-pin internal DC power connector
• 1 x Stereo speaker connector
• 1 x DMIC header
• 1 x Backlight inverter voltage selection header
• 1 x FPD brightness header
• 1 x Panel voltage selection header
• 1 x Panel off header
• 1 x LVDS connector(s)
• 1 x System panel connector
• 1 x LPC Debug header
• 1 x Speaker connector
• Accessories
• User´s manual
• 1 x ACC Express Activation Key Card
• I/O Shield
• Thin Mini ITX I/O Shield
• 1 x SATA power cable
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME
• Form Factor
• Thin Mini ITX Form Factor
• 6.7  inch x 6.7  inch ( 17  cm x 17  cm )
